Restricting Access to iSCSI Targets on Openfiler
Finding
There seems to be a problem with access to Openfiler. An entry in /etc/initiators.deny is generated automatically denying the access from ALL to every iSCSI target configured:
[root@localhost ~]# cat /etc/initiators.deny # PLEASE DO NOT MODIFY THIS CONFIGURATION FILE! # This configuration file was autogenerated # by Openfiler. Any manual changes will be overwritten # Generated at: Sat Dec 25 23:29:38 CET 2010 iqn.2006-01.com.openfiler:tsn.bb9e3f57be77 ALL iqn.2006-01.com.openfiler:tsn.86f8bd9df8cb ALL # End of Openfiler configuration
In my case when there was only one target, it prevents every client from accessing the disks exported. To solve this I added a second target (as I had to setup another cluster), added every client in the “System / Network” section and set the ACL for every iSCSI target explicitly.
How to…

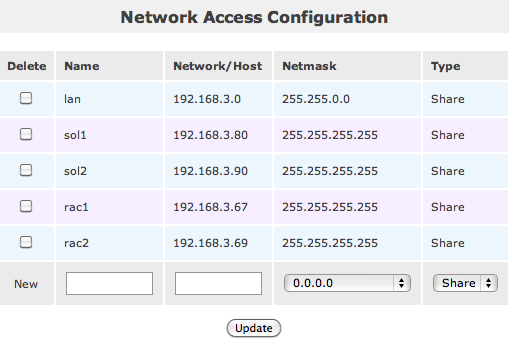

Add every client in “System / Network”:

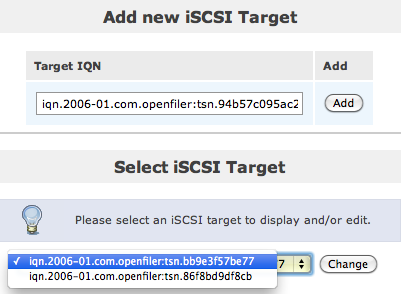

Then create another iSCSI target in “Volumes / iSCSI Targets / Target Configuration”:
And setup the ACL for every target:
Here we go
So my Oracle RAC sees the following disks:
root@rac1:/ # format
Searching for disks...done
AVAILABLE DISK SELECTIONS:
0. c0d0
/pci@0,0/pci-ide@1f,1/ide@0/cmdk@0,0
1. c1t1d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,0
2. c1t2d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,1
3. c1t3d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,2
4. c1t4d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,3
5. c1t5d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,4
6. c1t6d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,5
7. c1t7d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,6
8. c1t8d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,7
9. c1t9d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,8
10. c1t10d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,9
11. c1t11d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,10
12. c1t12d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,11
13. c1t13d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,12
14. c1t14d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,13
15. c1t15d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,14
16. c1t16d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,15
17. c1t17d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.bb9e3f57be770001,16
Specify disk (enter its number):Note that every disk on controller c1 just shows the tsn.bb9e3f57be770001 so it’s from the first target. My Solaris Cluster sees the disks from target tsn.86f8bd9df8cb0001 on controller c2:
root@sol1:/ # format
Searching for disks...done
AVAILABLE DISK SELECTIONS:
0. c0t0d0
/pci@0,0/pci8086,2829@d/disk@0,0
1. c1t0d0
/pci@0,0/pci1000,8000@14/sd@0,0
2. c1t1d0
/pci@0,0/pci1000,8000@14/sd@1,0
3. c2t5d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.86f8bd9df8cb0001,0
4. c2t7d0
/iscsi/disk@0000iqn.2006-01.com.openfiler%3Atsn.86f8bd9df8cb0001,1
Specify disk (enter its number):That’s exactly what I want.
HTH.
